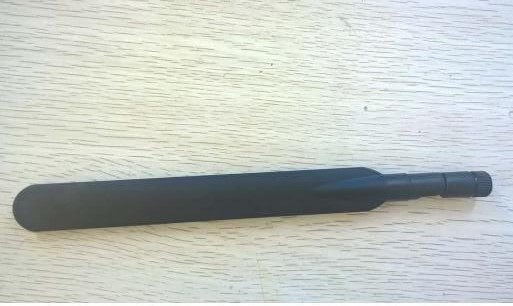

700MHZ~2200MHz BroadBand Antenna
Frequency: 700 MHz~2200HMz
Gain: 2 dBi Low-Frequency, 3 dBi High-Frequency
Connection Type: SMA
Colour: Black
Passive test data
|
Effi&Gain
|
|
Passive Test For 700-2200
|
|
Freq
|
Effi
|
Gain
|
Freq
|
Effi
|
Gain
|
|
(MHz)
|
(%)
|
(dBi)
|
(MHz)
|
(%)
|
(dBi)
|
|
740
|
63.27
|
1.33
|
1920
|
65.43
|
1.93
|
|
750
|
64.77
|
1.41
|
1930
|
66.69
|
1.98
|
|
760
|
67.59
|
1.43
|
1940
|
68.60
|
2.36
|
|
770
|
65.21
|
1.45
|
1950
|
67.21
|
2.76
|
|
780
|
66.15
|
1.41
|
1960
|
65.09
|
2.67
|
|
790
|
67.17
|
1.52
|
1970
|
64.90
|
2.61
|
|
800
|
65.73
|
1.43
|
1980
|
69.23
|
2.50
|
|
|
|
|
1990
|
68.74
|
2.50
|
|
1710
|
67.83
|
1.98
|
2000
|
66.69
|
2.32
|
|
1720
|
69.54
|
2.00
|
2010
|
65.53
|
2.24
|
|
1730
|
70.58
|
2.41
|
2020
|
68.87
|
2.79
|
|
1740
|
72.00
|
1.91
|
2030
|
68.72
|
2.56
|
|
1750
|
71.95
|
2.08
|
2040
|
68.80
|
2.73
|
|
1760
|
72.56
|
1.98
|
2050
|
66.98
|
2.70
|
|
1770
|
69.83
|
1.91
|
2060
|
69.68
|
2.91
|
|
1780
|
71.71
|
2.02
|
2070
|
67.13
|
2.62
|
|
1790
|
69.39
|
1.92
|
2080
|
68.89
|
3.05
|
|
1800
|
66.93
|
2.21
|
2090
|
69.76
|
2.75
|
|
1810
|
68.09
|
2.54
|
2100
|
67.26
|
2.96
|
|
1820
|
66.19
|
2.11
|
2110
|
66.06
|
3.14
|
|
1830
|
69.19
|
2.08
|
2120
|
65.16
|
2.93
|
|
1840
|
67.39
|
2.38
|
2130
|
66.97
|
2.75
|
|
1850
|
69.01
|
2.21
|
2140
|
69.45
|
2.64
|
|
1860
|
66.03
|
2.15
|
2150
|
68.03
|
2.50
|
|
1870
|
68.21
|
2.34
|
2160
|
66.48
|
2.36
|
|
1880
|
65.06
|
2.05
|
2170
|
67.50
|
2.05
|
|
1890
|
69.99
|
2.34
|
2180
|
64.01
|
1.95
|
|
1900
|
67.24
|
2.01
|
2190
|
66.47
|
2.19
|
|
1910
|
69.27
|
1.97
|
2200
|
65.58
|
2.16
|
|
